Overview

In 2019, Napier-Reid provided a pressure filter system for the water treatment plant in Resolute Bay, Nunavut.

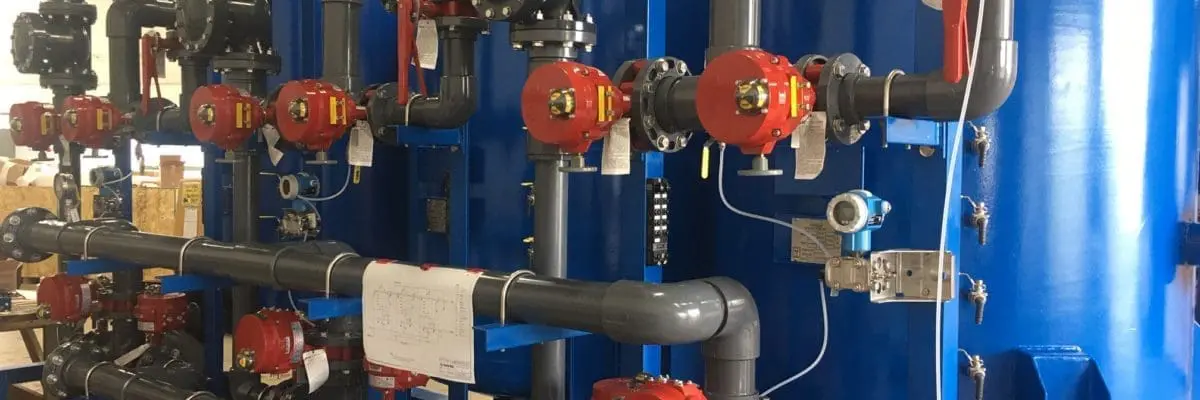

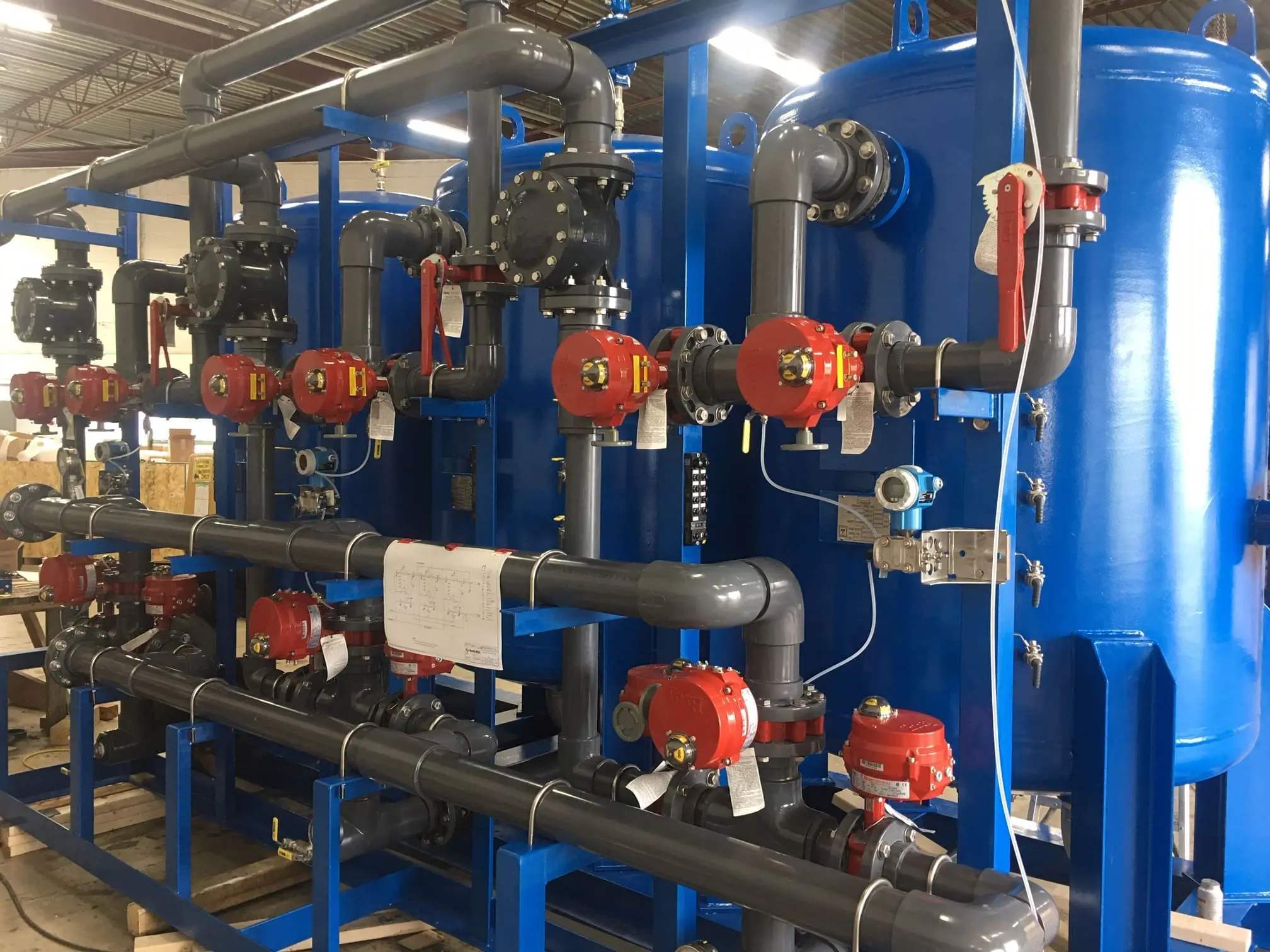

The three Napier-Reid PPW017 pressure filters are mounted on a skid with a carbon steel frame, and are designed to each handle a flow rate of 374.4 m³/day, for a total capacity of 1,123 m³/day.

The scope of supply for the project includes a skid-mounted pressure filtration system comprised of three skid-mounted cartridge filters, a PLC control panel, chemical addition tanks and mixers, an ultrasonic sensor, one lot of calcium hypochlorite, two chemical dosing panels, two injection quills, spare parts for both the skid and the chemical dosing panels, and shop drawings and manuals.
